Basic characteristics:
The bronze cloth hole bearing is based on cusn6.5p0.1 or cusn8p0.3 bronze, and a uniform and orderly oil injection hole is designed. Grease after assembly. The bearing has the advantages of large oil storage, convenient installation and small design machine, and can replace the copper sleeve, greatly reducing the cost.

TECHNICAL DATE

Maximum load Static load 120N/mm2 hardness HB 90-120 Dynamic load 40N/mm2   Elongation rate 40% Maximum speed 2m/s   Service temperature -100℃~＋200℃ Max PV 2.8N/mm2.m/s   friction coefficient 0.08~0.25 tensile strength 450N/mm2   Thermal conductivity 60W(m.K)-1 Yield strength   250N/mm2   Coefficient of linear expansion 15x10-6K

應(yīng)APPLICATION CHARACTER

1. The inner hole of the product is full of rhombic oil holes and oil pits, which can store a large amount of grease in use and prolong the interval of oil filling； 2. Less oil lubrication, suitable for the occasion of difficult oiling or water lubrication； 3. Good wear resistance, small friction coefficient and long service life； 4. It can be used in the range of - 100 ℃ - 200 ℃； 5. Good running in performance, low noise, no pollution； 6. Thin wall structure, light weight, can reduce mechanical volume； 7. The matrix has high density, no shrinkage cavity and large bearing capacity； At present, it has been widely used in the sliding parts of various machines, such as: automatic mechanical equipment (stretching, swinging, sliding, bending, turning, turning parts) hydraulic cylinder guide sleeve, textile machinery, plastic molding machine, die-casting machine, rubber machinery, hydraulic transport vehicle, automobile, motorcycle industry, port, water conservancy, engineering, agricultural machinery, etc.

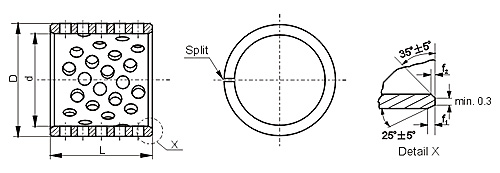

FB092 Metric cylindrical bushes

d D f1 f2 L 0 -0.40 10 15 20 25 30 35 40 50 60 70 80 90 100 10 12 0.5 0.3 FB092 1010 FB092 1015 FB092 1020                     12 14 FB092 1210 FB092 1215 FB092 1220                     14 16 FB092 1410 FB092 1415 FB092 1420 FB092 1425                   15 17 FB092 1510 FB092 1515 FB092 1520 FB092 1525                   16 18 FB092 1610 FB092 1615 FB092 1620 FB092 1625                   18 20 FB092 1810 FB092 1815 FB092 1820 FB092 1825                   20 23 0.8 0.4 FB092 2010 FB092 2015 FB092 2020 FB092 2025                   22 25 FB092 2210 FB092 2215 FB092 2220 FB092 2225 FB092 2230                 24 27   FB092 2415 FB092 2420 FB092 2425 FB092 2430                 25 28   FB092 2515 FB092 2520 FB092 2525 FB092 2530                 28 31   FB092 2815 FB092 2820 FB092 2825 FB092 2830                 30 34 1.0 0.6   FB092 3015 FB092 3020 FB092 3025 FB092 3030 FB092 3035 FB092 3040             32 36   FB092 3215 FB092 3220 FB092 3225 FB092 3230 FB092 3235 FB092 3240             35 39   FB092 3515 FB092 3520 FB092 3025 FB092 3530 FB092 3535 FB092 3540             40 44     FB092 4020 FB092 4025 FB092 4030 FB092 4035 FB092 4040 FB092 4050           45 50 1.2 0.8     FB092 4520 FB092 4525 FB092 4530 FB092 4535 FB092 4540 FB092 4550           50 55     FB092 5020 FB092 5025 FB092 5030 FB092 5035 FB092 5040 FB092 5050 FB092 5060         55 60     FB092 5520 FB092 5525 FB092 5530 FB092 5535 FB092 5540 FB092 5550 FB092 5560         60 65       FB092 6025 FB092 6030 FB092 6035 FB092 6040 FB092 6050 FB092 6060 FB092 6070       65 70         FB092 6530 FB092 6535 FB092 6540 FB092 6550 FB092 6560 FB092 6570       70 75         FB092 7030 FB092 7035 FB092 7040 FB092 7050 FB092 7060 FB092 7070 FB092 7080     75 80         FB092 7530 FB092 7535 FB092 7540 FB092 7550 FB092 7560 FB092 7570 FB092 7580     80 85 1.4 0.8         FB092 8030 FB092 8035 FB092 8040 FB092 8050 FB092 8060 FB092 8070 FB092 8080     85 90         FB092 8530 FB092 8535 FB092 8540 FB092 8550 FB092 8560 FB092 8570 FB092 8580 FB092 8590   90 95         FB092 9030 FB092 9035 FB092 9040 FB092 9050 FB092 9060 FB092 9070 FB092 9080 FB092 9090   95 100             FB092 9540 FB092 9550 FB092 9560 FB092 9570 FB092 9580 FB092 9590 FB092 95100 100 105               FB092 10050 FB092 10060 FB092 10070 FB092 10080 FB092 10090 FB092 100100 105 110               FB092 10550 FB092 10560 FB092 10570 FB092 10580 FB092 10590 FB092 105100 110 115               FB092 11050 FB092 11060 FB092 11070 FB092 11080 FB092 11090 FB092 110100

d D f1 f2 L 0 -0.40 25 30 35 40 50 60 70 80 90 100 115 120 1.4 0.8         FB092 11550 FB092 11560 FB092 11570 FB092 11580 FB092 11590 FB092 115110 120 125           FB092 12060 FB092 12070 FB092 12080 FB092 12090 FB092 120110 125 130           FB092 12560 FB092 12570 FB092 12580 FB092 12590 FB092 125110 130 135           FB092 13060 FB092 13070 FB092 13080 FB092 13090 FB092 130110 135 140           FB092 13560 FB092 13570 FB092 13580 FB092 13590 FB092 135110 140 145           FB092 14060 FB092 14070 FB092 14080 FB092 14090 FB092 140110 145 150           FB092 14560 FB092 14570 FB092 14580 FB092 14590 FB092 145110 150 155           FB092 15060 FB092 15070 FB092 15080 FB092 15090 FB092 150110 155 160           FB092 15560 FB092 15570 FB092 15580 FB092 15590 FB092 155110 160 165           FB092 16060 FB092 16070 FB092 16080 FB092 16090 FB092 160110 165 170           FB092 16560 FB092 16570 FB092 16580 FB092 16590 FB092 165110 170 175           FB092 17060 FB092 17070 FB092 17080 FB092 17090 FB092 170110 175 180           FB092 17560 FB092 17570 FB092 17580 FB092 17590 FB092 175110 180 185           FB092 18060 FB092
